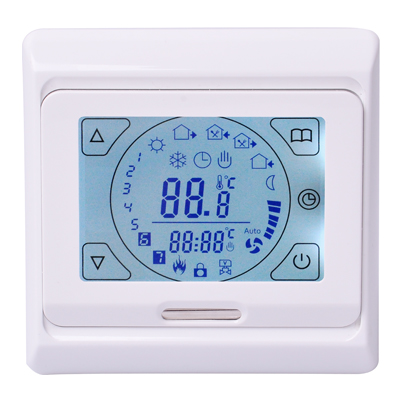

Touch screen heating thermostat

Introduction

The E91...is used for 2-position control with on/off output for the control the temperature by means of an NTC sensor placed externally or internally in the thermostat.
The thermostat acquires the actual temperature with its built-in sensor or floor sensor, and the heating contact will close when the room temperature falls below the selected setpoint.

Application

For the control of warm-water (floor) heating systems and direct electric heating systems used in Commercial buildings, Residential buildings, Light industrial buildings...

Features

Touch-screen operating interface
7-day programmable function for energy-saving operation
On/off control output for heating device
Symbol indicator when heating is on
Temperature limitation function for protecting the floor
“Key-lock” function for protecting the setted parameters (especially suitable for Public Places)
Current room temperature displaying when the thermostat is switched-off

 Technical data:

Voltage: AC230V (AC110V / AC24V available)
Power consumption: 3.5W
Switching differential: ±0.5K
Protective housing: IP20
Housing material: self-extinguishing PC
Floor sensor: rubber-thermoplastic NTC sensor, cable length is 3m
